Conveyor Rollers , Idlers
1.The idlers are playing a important part in the belt conveyor system. 2.They consist in the entire transport process to support the belt and move the materials loaded on the belt.

1.The idlers are playing a important part in the belt conveyor system.

2.They consist in the entire transport process to support the belt and move the materials loaded on the belt.

Product Characteristics:

The idler is composed of eight parts, which is the bearing, stamped bearing housing, cold drag axle, circlip for axle, steel wire circlip for axle, first labyrinth style sealing, second labyrinth style sealing and cover.

The idler is made of special fine welding steel pipe and we do puncture process in the tube. We control roundness in special tolerance scope. The axle is made according to standard tolerance and manufactured by fine cold drag steel. The bearing housing has been manufactured after stamping many times by the imported cold griped steel.

Features:

1.Fine welding tube ensure the rollers with low vibration and noise.

2.Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc.

Conveyor Idler Material Ranges:

1.Steel Idler

2.Nylon idler

3.Rubber Idler

4.Ceramic idler

5.Plastic idler

6.HDPE idler

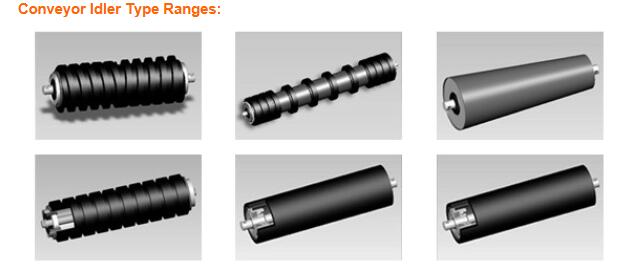

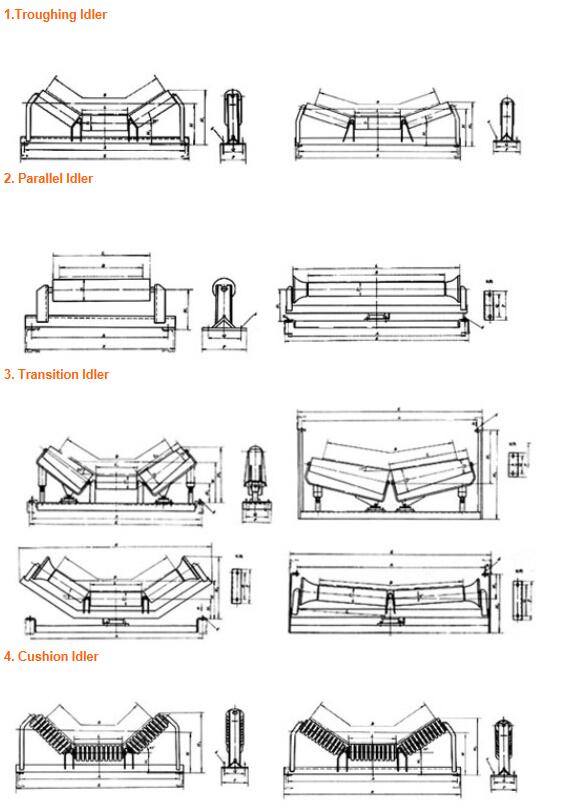

Conveyor idler Type Ranges:
