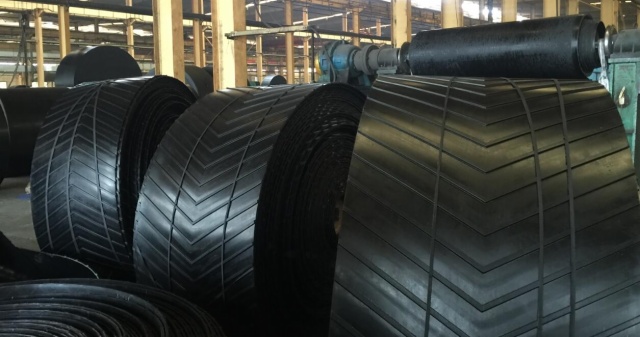

Chevron Conveyor Belt
Pattern:we can make different patterns conveyor belt,it is all up to your deamnd Types: 1) open v and closed v and other patterns 2) the depth of pattern is 15mm-25mm higher the surface 3) each kind of pattern includes three types

Pattern:we can make different patterns conveyor belt,it is all up to your deamnd

Types:

1) open v and closed v and other patterns
2) the depth of pattern is 15mm-25mm higher the surface
3) each kind of pattern includes three types, high, medium and low.

characteristic :

1.there is no joint in belt carcass
2.Long service life
3.Cleats and top cover rubber are vulcanized integrally

4.Cleat pattern, angle and pitch are designed elaborately.

Materials: NN/ EP/PP/Cotton

Chevron types:C6/C15/C25/Y32/V6

Cleat Profile

Type

Cleat Height (mm)

Cleat Width (mm)

Cleat Pitch (mm)

Plain Area

Metric System

C5

C5

5

300-1200

100

300-1200

C6

6

300-1200

100

300-1200

V6

V6

6

1200-1800

25

1200-2300

C12.7

C12.7

12.5

914.4

200

1100-1200

C15

C15-P550

15

550

250

600-1200

C15-P800

15

800

300

850-1200

C15-P730

15

730

300

800-1200

C25

C25-P450

25

450

335

500-1200

C25-P550

25

550

330

600-1200

C25-P750

25

750

330

800-1200

Y32

Y32-P900

32

900

330

1000-1200
