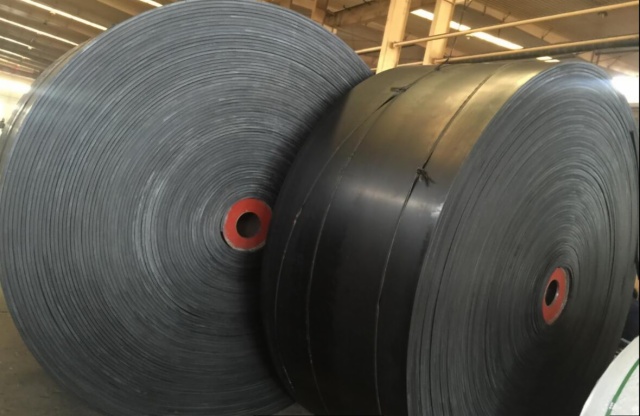

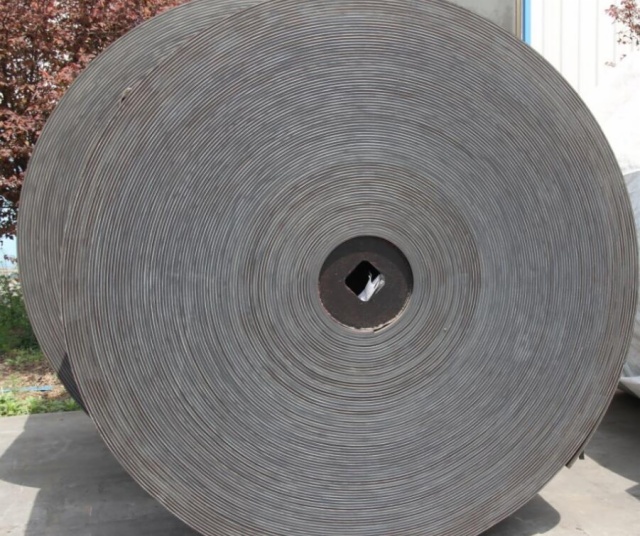

EP conveyor belt (Polyester Conveyor Belt), Multi-ply EP carcass is warp polyester +weft polyamide, with high abrasion resistant cover, fatigue and wear resistance ,rosion resistance of water, steam, chemical etc, good impact resistance, low elongation, good stability over heated and long service life.
Specification and technical data of multi-ply polyester conveyor belt:
|
Fabric type |
Fabric structure |
Fabric
specs
|
Ply thickness (mm/P) |
Strength series(N/mm) |
Cover thickness (mm) |
Width
（mm）
|
Length
（m）
|
||||||
|
Warp |
Weft |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Lower |
|||||
|
Polyester
(EP)
|
Polyester
(E)
|
Polyamide
(P)
|
EP-80 |
1.0 |
160 |
240 |
320 |
400 |
480 |
2.0~8 |
0~4.5 |
400~2500 |
<=500 |
|
EP-100 |
1.0 |
200 |
300 |
400 |
500 |
600 |
|||||||
|
EP-125 |
1.0 |
250 |
375 |
500 |
625 |
750 |
|||||||
|
EP-150 |
1.1 |
300 |
450 |
600 |
750 |
900 |
|||||||
|
EP-200 |
1.2 |
400 |
600 |
800 |
1000 |
1200 |
|||||||
|
EP-250 |
1.4 |
500 |
750 |
1000 |
1250 |
1500 |
|||||||
|
EP-300 |
1.6 |
600 |
900 |
1200 |
1500 |
1800 |
|||||||
|
EP-350 |
1.7 |
- |
1050 |
1400 |
1750 |
2100 |
600~2500 |
||||||
|
EP-400 |
1.9 |
- |
- |
1600 |
2000 |
2400 |
600~2500 |
||||||
|
EP-500 |
2.1 |
- |
- |
2000 |
2500 |
3000 |
|||||||
|
EP-600 |
2.8 |
- |
- |
2400 |
3000 |
3600 |
|||||||
Adhesion and elongation of the belt:
|
Belt Carcass |
Adhesive strength |
Elongation |
|||
|
Between plies
N/mm
|
N/mm Between rubber and carcass |
Longitudinal
elongation at break
%>=
|
Longitudinal elongation at reference load
10%<=
|
||
|
Rubber thickness
<= 1.5mm
|
Rubber thickness
> 1.5mm
|
||||
|
Polyester |
>=5.5 |
>= 4.5 |
>=4.5 |
10 |
2.5 |
Standards:
GB/T7984-2001, DIN22102,BS490, AS1332, RMA, SABS1173 etc.
