Application

1.PVG type is suitable for applications at a slope angle of less than 20 degrees.

2.PVG type is covered with covers mainly composed of rubber ,which further improves the trough ability,resistance to wetness and slip ,resistance to low temperature,elongation and wear resistance of the belt.Thus it can not only enhance the slope angle of conveying but also the life of belt.

Technical standards

MT914-2008, BS3289, BC158, AS4606, etc.

Elongation tensile strength

Vertical:680N/mm----3100N/mm

Horizontal:265N/mm---450N/mm

Width

300mm---2000mm

The properties

1.PVG type belts upper and lower layers are nitrile rubber and PVC, single-sided tape thickness: 1.5mm-4.5mm.

2.PVG conveyer belts inclined angle: <20°.

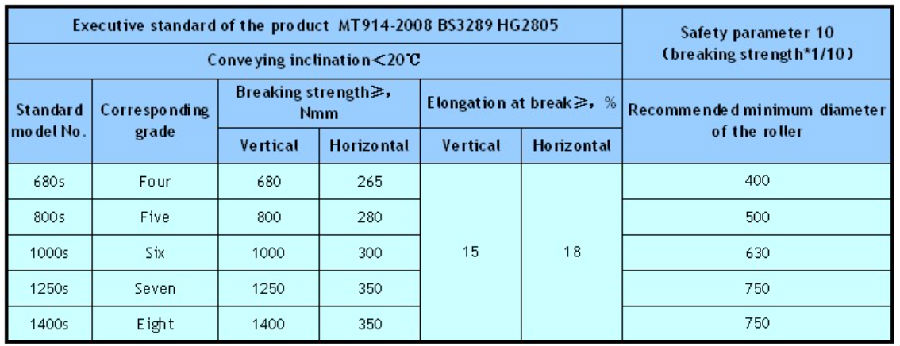

Product Technical details
