Application
1.PVC type is suitable for applications in dry conditions at a slope angle of no greater than 16 degrees.PVG type is suitable for applications at a slope angle of less than 20 degrees.
Technical standards
MT914-2008, BS3289, BC158, AS4606, etc.
Elongation tensile strength
Vertical:680N/mm----3100N/mm
Horizontal:265N/mm---450N/mm
Width
300mm---2000mm
The properties

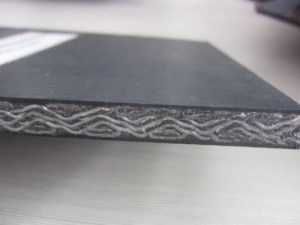

1.PVC type conveyer belt's upper and lower layers are PVC coating cover, single-sided tape thickness: ≥1.0mm; PVG type belt's upper and lower layers are nitrile rubber and PVC, single-sided tape thickness: 1.5mm-4.5mm.
2.PVC type conveyer belt's inclined angle: <16°;
Product Technical details
|
TYPE |
TENSILE STRENGTH N/mm |
Break elongation (%) |
Tear strength N≥ |
||
|
Longitudinal≥ |
Transverse≥ |
Longitudinal≥ |
Transverse≥ |
||
|
PVC/PVG680 |
680 |
265 |
15 |
18 |
1091 |
|
PVC/PVG800 |
800 |
280 |
15 |
18 |
1180 |
|
PVC/PVG1000 |
1000 |
300 |
15 |
18 |
1180 |
|
PVC/PVG1250 |
1250 |
350 |
15 |
18 |
1540 |
|
PVC/PVG1400 |
1400 |
350 |
15 |
18 |
1540 |
|
PVC/PVG1600 |
1600 |
400 |
15 |
18 |
|
|
PVC/PVG1800 |
1800 |
400 |
15 |
18 |
|
|
PVC/PVG2000S |
2000 |
400 |
15 |
18 |
|
|
PVC/PVG2240S |
2240 |
450 |
15 |
18 |
|
